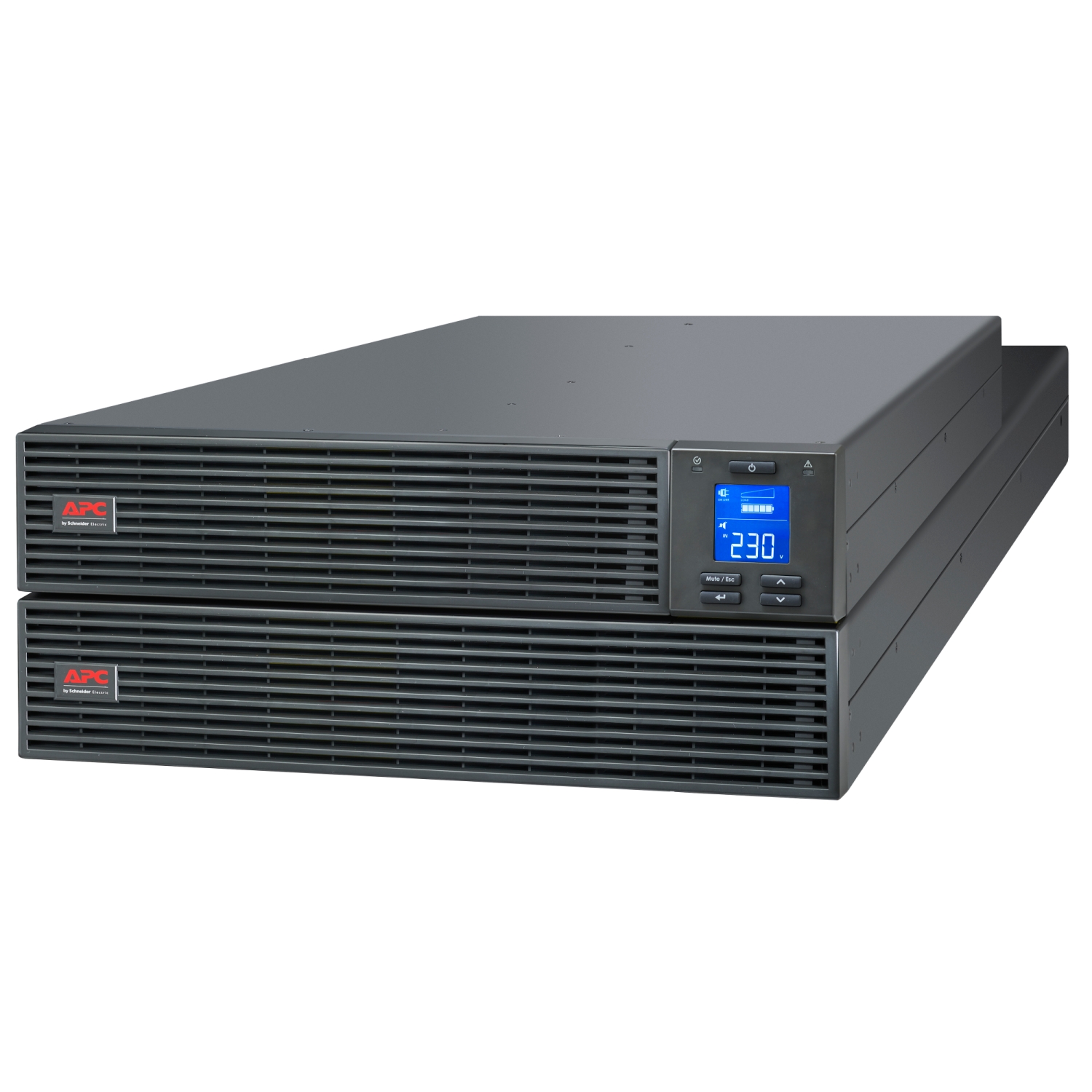

APC Easy UPS On-Line SRV 10000VA RM 230V with Rail

APC Easy UPS On-Line SRV 10000VA RM 230V with Rail

รหัสสินค้า : APC-SRVPM10KRI

Output

Max Configurable Power (Watts)
10.0kWatts / 10.0kVA
Efficiency at Full Load
94.0 %
Output Voltage Distortion
1 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220 V, 240 V
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)

Input

Input frequency
40 - 70 Hz Auto sensing
Input voltage range for main operations
110 - 300 Half load, 176 - 300 Full loadV
Efficiency at Full Load
94.0 %
Other Input Voltages
220 V, 240 V

Batteries & Runtime

Battery type
Lead-acid battery
Typical recharge time
9hour(s)
Nominal Battery Voltage
192 V
Expected Battery Life (years)
3 - 5
Battery Charge Power (Watts)
235 Watts
Runtime
View Runtime Graph
Efficiency
View Efficiency Graph

Communications & Management

Interface Port(s)
DB-9 RS-232, Intelligent Smart Slot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
600Joules

Physical

Maximum Height
173MM, 17.3CM
Maximum Width
438MM, 43.8CM
Maximum Depth
710MM, 71.0CM
Net Weight
68.0KG
Shipping weight
79.0KG
Shipping Height
485MM, 48.5CM
Shipping Width
600MM, 60.0CM
Shipping Depth
836MM, 83.6CM
Color
Black

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (Non-condensing) %
Operating Elevation
0 - 3000meters
Storage Temperature
-15 - 60 °C
Storage Relative Humidity
0 - 95 (Non-condensing) %
Storage Elevation
0 - 15000meters
Audible noise at 1 meter from surface of unit
58.0dBA
Online thermal dissipation
2128.0BTU/hr
Protection Class
IP20

Conformance

Approvals
CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, TISI
Standard warranty
2 years repair or replace

Sustainable Offer Status

RoHS
Compliant

ราคาปกติ: 145,000.00 บาท
4%
ราคาลดพิเศษ: 139,000.00 บาท (148,730.00 บาท รวมภาษีแล้ว)
